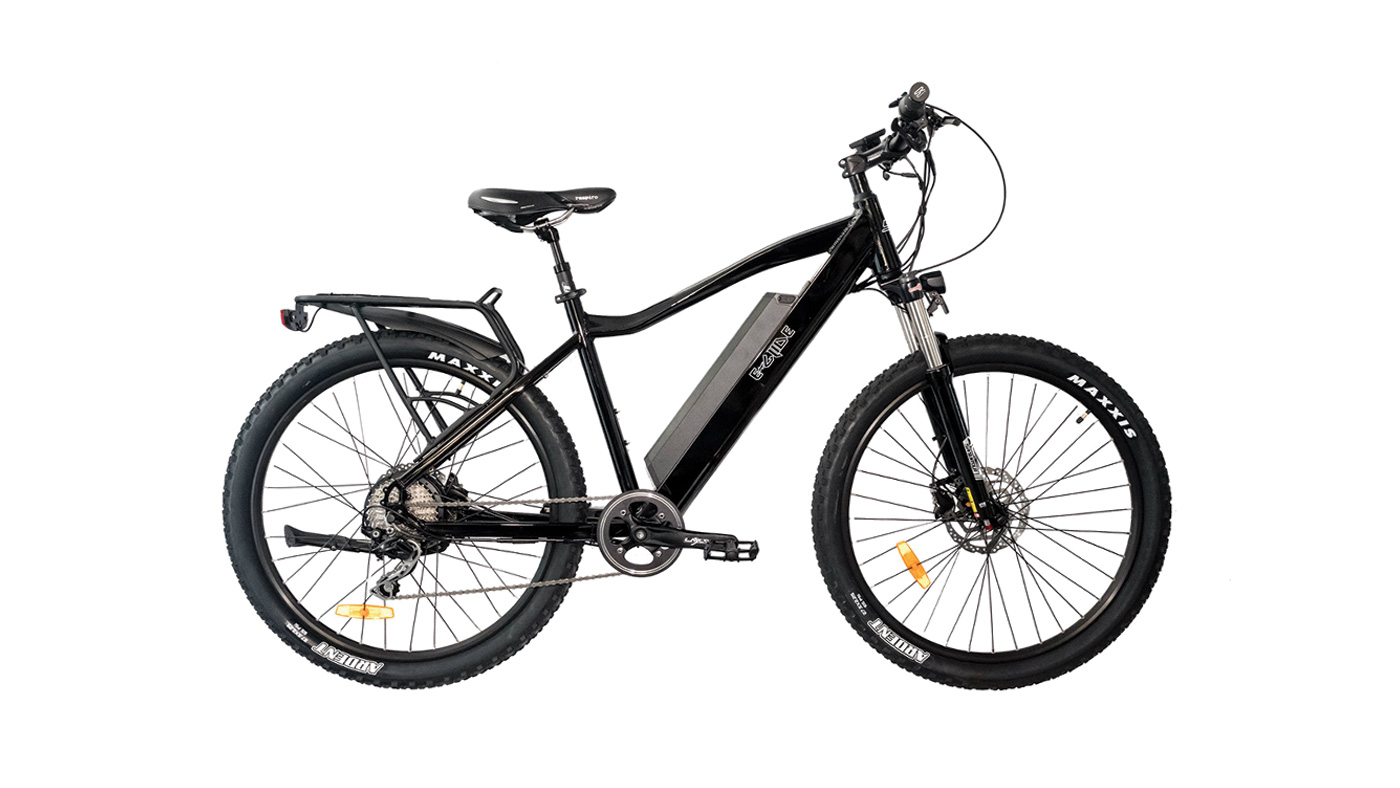

e glide st electric bike2

E-Glide S/T Electric Bike

Advanced, unique and powerful





After two years of producing our very popular but minimalistic SS ebike, it became apparent that many of our customers wanted a more powerful, multi purpose ebike that left nothing to be desired.. We listened carefully, and built the E-Glide S/T, an amazing ebike that is complete in everyway.
We invite you to take a very detailed look at this new ebike, component by component, and compare it to everything else available. I believe you will be impressed.



  1. E-Glide ST Features
  2. E-Glide ST Specifications
Table Style
 Specifications
Make E-Glide
Model ST
List Price $ 2,699.00
Body Position Forward
Suggested Use Urban, Commuting, Trail
Electric Bike Class Class 2 / Throttle Control / Pedal Assist
Warranty 1 Year Comprehensive
2 Years Frame
Availability United States
 Bicycle Details
Total Weight 51 Pounds
Battery Weight 9 Pounds
Frame Types High-Step
Frame Sizes 17, 19, 21 inches
Frame Material 6061 Aluminum Alloy
Frame Colors Gun Metal Grey
Frame Fork Details Suntour XCR32 Air Suspension Fork. Magnesium Lowers, Rebound Adjustment, Speed Lock out Lever. 100mm travel.
Frame Rear Details Custom Ebike Specific Dropouts
Attachment Points Fender Bosses, Rear Rack Bosses
Gearing Details 10 Speed 1x10 Shimano Deore, 11-36T
Shifter Details Shimano Deore Triggers on Right
Cranks Aluminum Alloy, 170 mm Length
Pedals High Grip Pedals
Headset Neco Integrated, Tapered 1-1/8"
Stem Aluminum Alloy
Handlebar Aluminum Alloy, Low-Rise, 31.8 mm Diameter, 15 degree Rise, 25.5" Length
Brake Details Hydraulic Dual Piston Tektro ND-M330
Front Roto: 180mm
Rear Rotor: 160mm
Grips Rubber Ergonimic with Bar Ends, Locking
Saddle Italian Selle Royale Respiro Gel Saddle
Seat Post Uno Suspension
Seat Post Diameter 30.4
Rims 6061 Mondial DA-2000 27.5 inches(584 x 19)
Spokes Stainless Steel 14G Front 13G Rear, Black
Wheel Sizes 27.5 inches (584 x 19)
Tire Details Maxxi Ardent Max 65 PSI
also available
Schwable Marathon Mondial 35-70 PSI
Tube Details Schrader Valve
Accessories Integrated Kendo LED Headlight and LED Rear Light
Aluminum Alloy Frame Mounted Rear Rack
Plastic Fenders
Alloy Bash Guard
Stay Mounted Kickstand
USB Charging Port on Battery and Display Panel
Water Bottle Bosses
Battery Charger 1.6 lb 2 Amp Charger
 Electronic Details
Motor Brand Dapu
Motor Type Rear-Mounted Geared Hub
Motor nominal Output 500 Watts / Peak Output 900 Watts
Battery Brand Panasonic
Battery Voltage 48 volts
Battery Amp Hours 11.4
Charge Time 6 hours
Estimated Min Range 20 Miles
Estimated Max Range 45 Miles
Display Type Integrated Color Backlit LCD
Readouts Three "Power Level" modes
Five Levels of Pedal Assist
Battery Level Indicator, Battery Voltage Indicator
Speed Odometer, Trip Meter
Walk Mode
Error Codes
Display Accessories Independent Button Pad
Drive Mode Cadence Sensing Pedal Assist, Hand Throttle
Top Speed 22 Mph

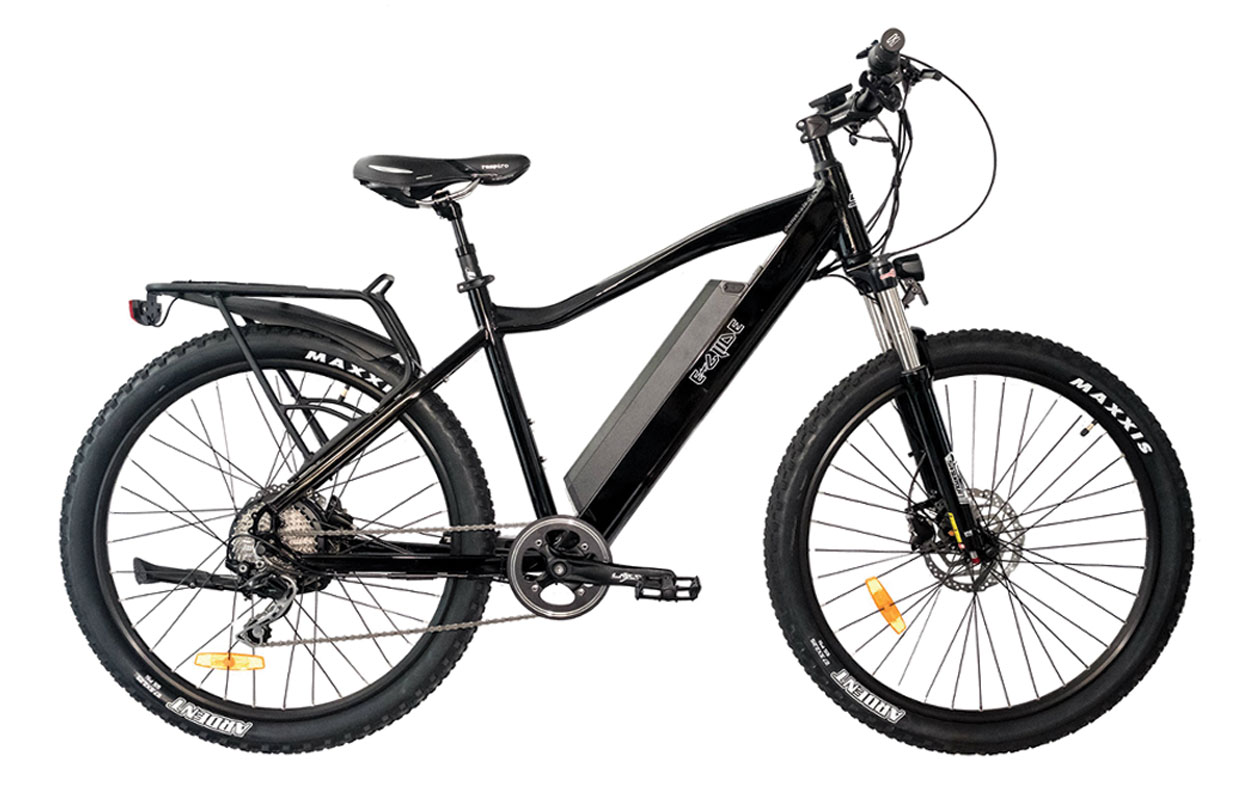

E-Glide ST

E-Glide ST

Our new S/T has a MSRP of $2,699.00 with an introductory price of $1,699.00.

The S/T is an electric bike for those who want a powerful, all purpose, fully loaded ebike,.

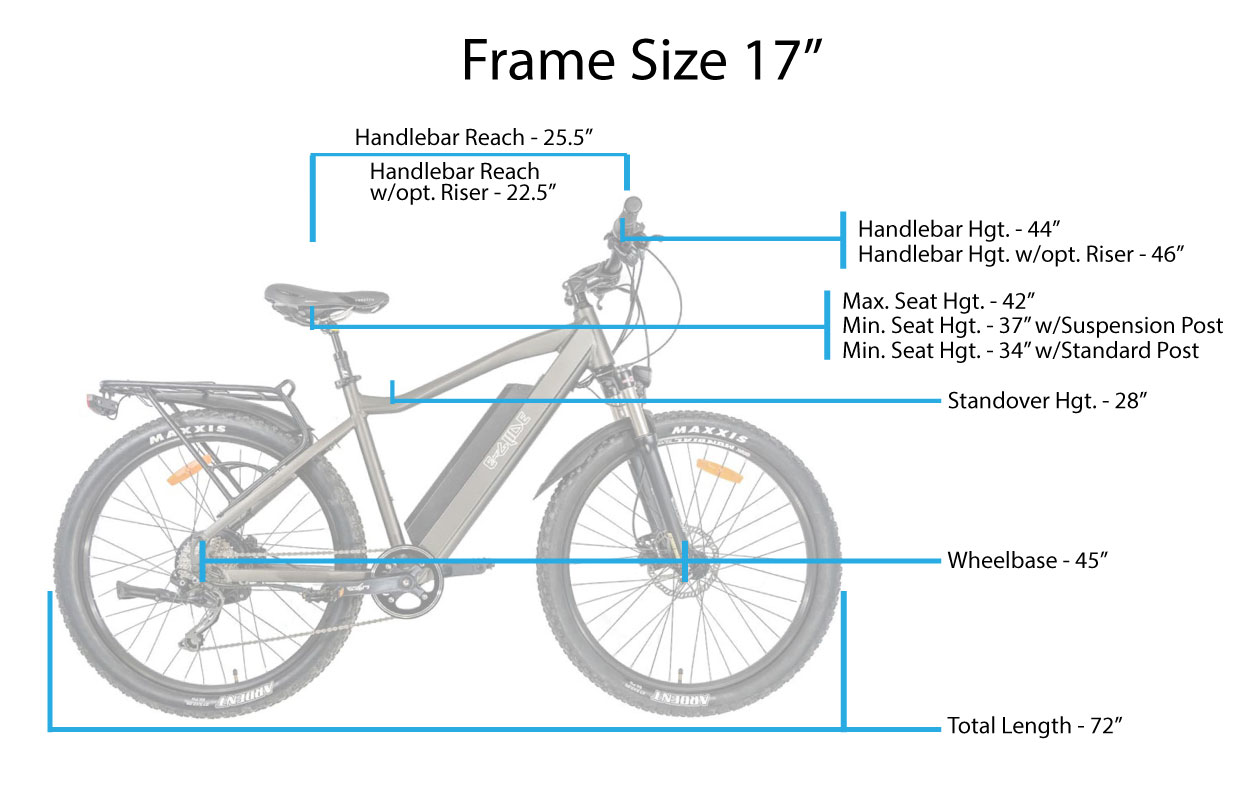

Click Here for 17" Frame Chart

Click Here for 19" Frame Chart

Additionally, a $175.00 shipping charge will be added at checkout.

Your Bike Shipment will arrive in 1-5 Days via FedEx Ground.

$2,699.00
$1,699.00
* Frame Size:

Tire Upgrade:


Handlebar Riser (View Frame Chart for Details):



The Features

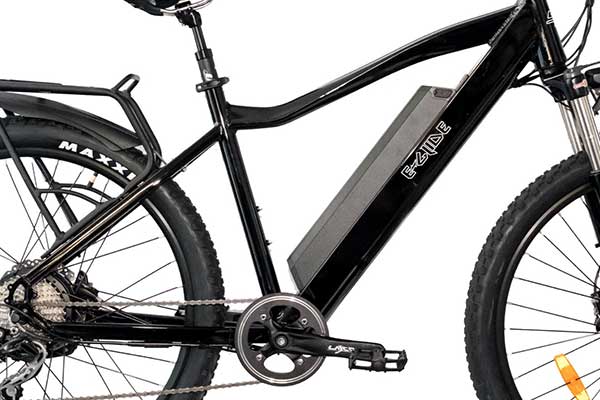

The Frame

The Frame

The S/T aluminum 6061 frame was designed from the ground up, and helps contribute to the bikes loaded weight of 51 pounds. Cables are hidden and routed through the frame. A unique top tube design reduces standover height. Available in 17, 19, and 21 inch size frames.


Place Your Order Here!

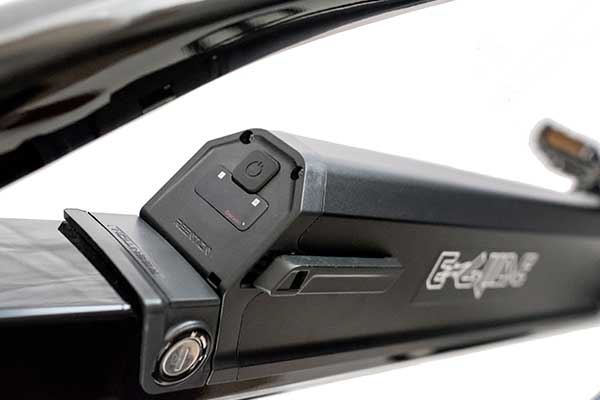

The Battery

The Battery

We use Panasonic lithium cells in our 11.4 amphour 48 volt battery. Panasonic cells are well known to be the best quality lithium cell available, they are used exclusively in the Tesla electric car. The battery locks into the downtube with a key, and can be removed easily in seconds. The battery sits low and forward in the frame, for perfect balance. It also includes a USB charging port.

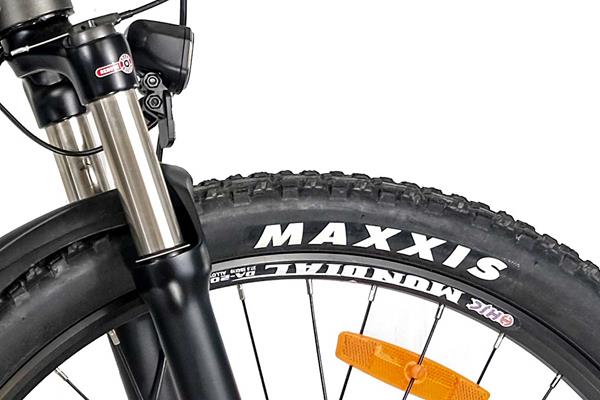

The Fork

The Fork

The Suntour XCR32 Air Suspension fork features magnesium lowers, rebound adjustment, and a speed lock out lever. Found on higher end ebikes, this Suntour fork has 100mm of travel, you can have full suspension, or not, instantly, by just pushing the lever.

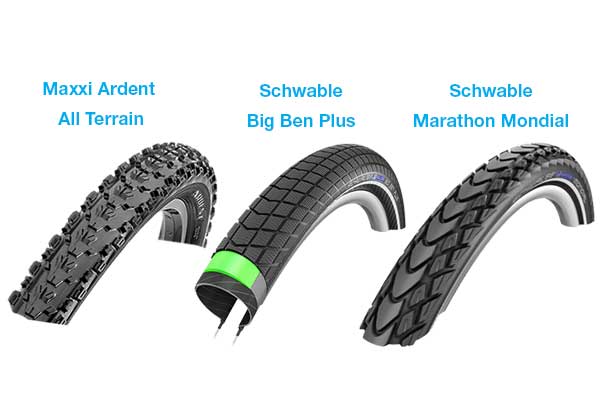

The Tires

The Tires

- The S/T comes standard with the very popular Maxxi Ardent all terrain tire.

- The Schwable Big Ben Plus is the ultimate e-bike street tire and is available as an upgrade. The robust 3mm Green Guard Kevlar liner and reinforced sidewalls makes this tire a durable and as flat free as a tire can be.

- The ultimate touring tire, the Schwable Marathon Mondial is a tire made for journeys where you might come across all kinds of different road surfaces, it is made for roads, tracks and trails of all continents. It is the longest lasting tire you will ever buy, it works great in all weather conditions. It has a Kevlar liner and has the highest "flat free" rating. It is our preferred tire for the S/T, and we have the only supply of 27.5 inch MM's in the US. The S/T rides smoothest with the Marathon Mondial.



More Features

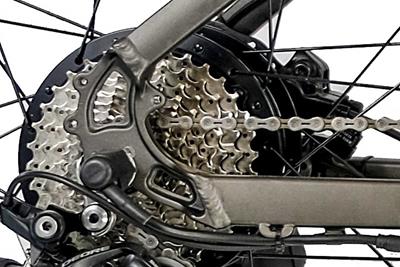

The Motor

The Motor

We chose what is recognized as one of the highest quality brushless hub motors available, made by Dapu. More expensive, more powerful, and more durable than the Bafang motor used on most ebikes, this 500 watt nominal, 900 watt peak motor is Dapu’s most popular, and will propel the S/T to 22MPH in seconds. It puts out 65Nm of torque.

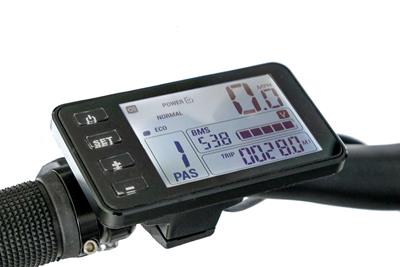

LCD Screen

LCD Screen

The large LCD control panel shows the power mode, pedal assist level, speedometer, odometer, trip odometer, battery level, voltage reading, and error diagnostics. The screen is backlit for good visibility, both day and night. It has a USB port for phone charging.

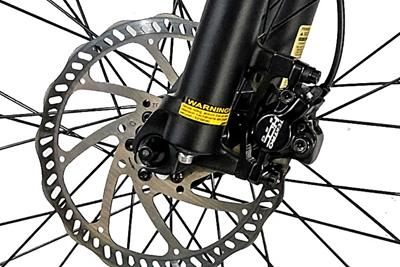

The Brakes

The Brakes

The S/T features Tectro HD-330 hydraulic disc brakes, 180mm rotor in front, 160mm rotor in rear. Only light finger pressure is needed for smooth, powerful braking. There is a big difference between hydraulic disc brakes and cable actuated disc brakes. Hydraulics are more precise, more effective, and need much less pressure. Tectro’s are well known for quality and durability.

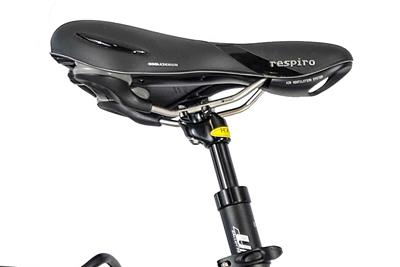

The Seat

The Seat

An adjustable suspension seatpost mates to the industry favorite Selle Royal Respiro gel saddle. Handmade in Italy - Selle Royal has been making saddles in Italy since 1956, trust in their 60+ year heritage of making the world's most comfortable saddles. Their Respiro gel saddle is one of the most popular seats in the industry, and is built to last many years.

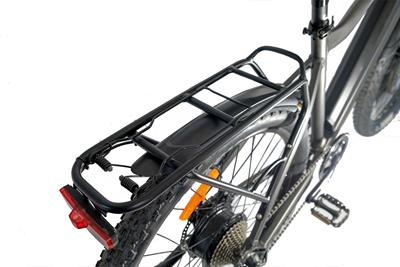

The Rack

The Rack

A HD rear rack with a rated capacity of 55 pounds bolts directly to the frame, and can be removed in minutes.

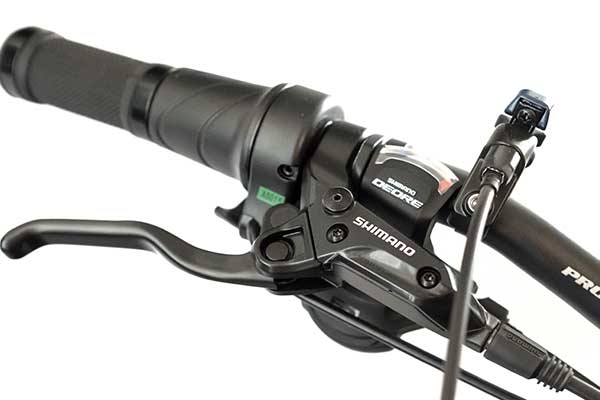

The Throttle

The Throttle

Realize instant full power anytime by a twist of the throttle. You can ride the S/T at 22MPH with throttle only.

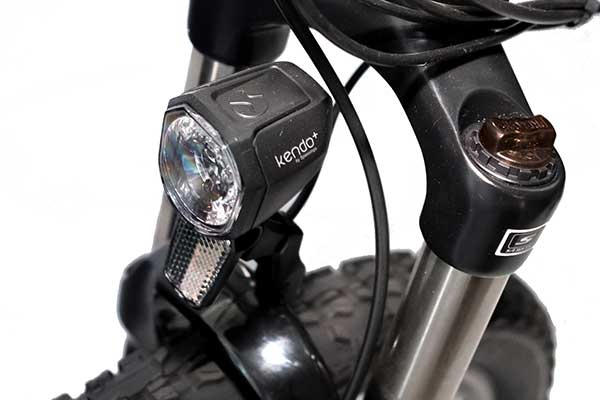

The Lights

The Lights

The S/T comes with a bright 15 LUX Kendo head light that can be seen for 2000 yards, and a bright rear light. Both lights power from the main battery, and can be turned on at the control panel.

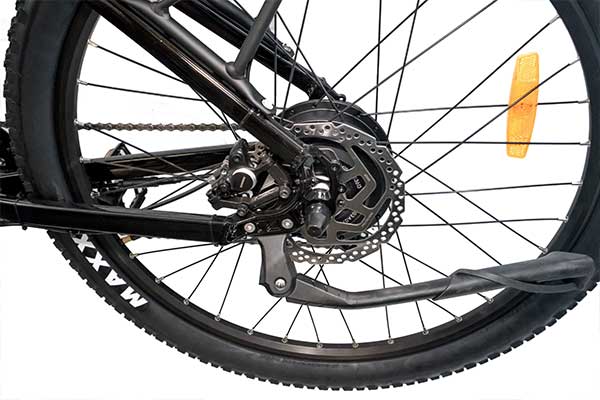

Kickstand

Kickstand

The specially designed S/T kickstand integrates cleanly into the frame, on the back of the bike, out of the way.
